Radio Race HELIUM PRO XXXL Frame

Prix ​​d'origine €709,99 - Prix ​​d'origine €709,99
Prix ​​d'origine €709,99
€709,99
€709,99 - €709,99
Prix ​​actuel €709,99

TVA incluse, hors frais de port

UGSA100018381

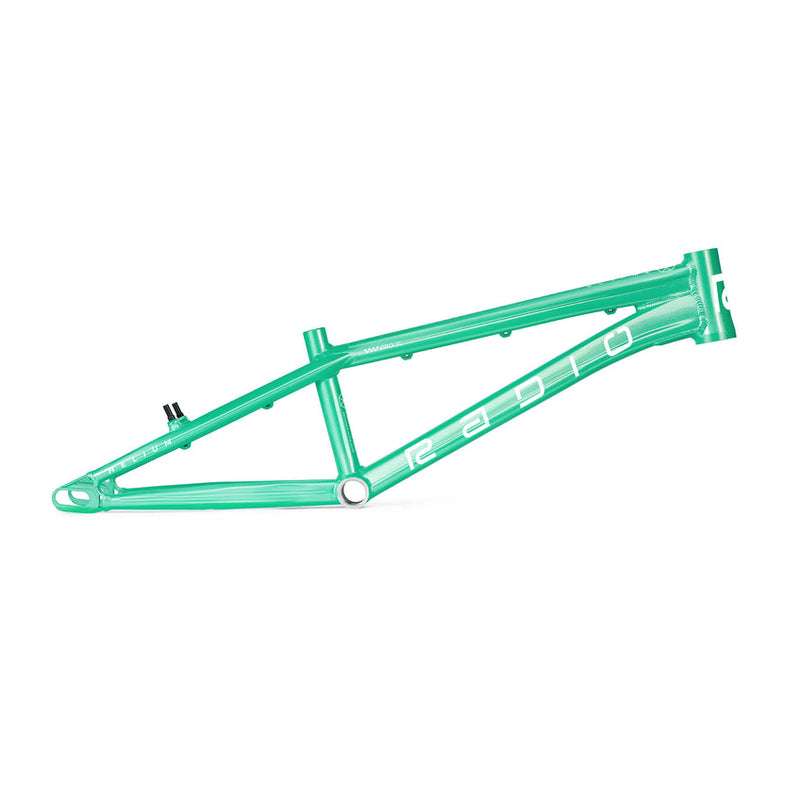

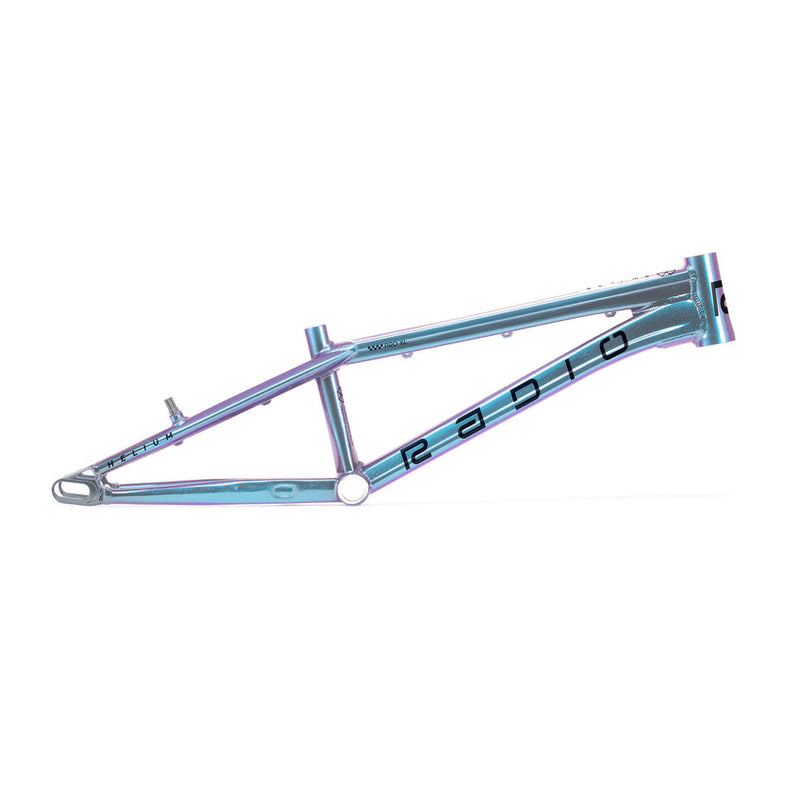

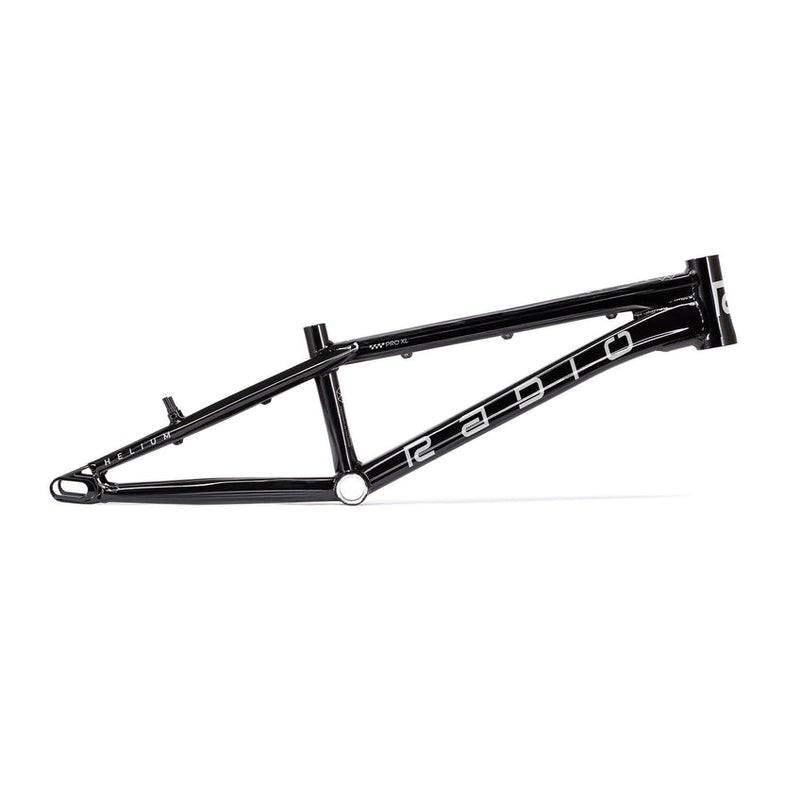

The Helium Pro XXXL Frame is a high-performance BMX race frame designed for riders who demand lightweight strength, precision handling, and modern race geometry. Built from hydroformed 6061 alloy with forged CNC-machined dropouts, this flagship frame delivers exceptional stiffness and speed for competitive BMX racing.

Features

‱ Super lightweight alloy race frame construction
‱ Hydroformed 6061 alloy tubing for maximum strength-to-weight ratio
‱ Forged & CNC-machined dropouts for improved durability
‱ 20mm thru-axle dropouts with adaptors for 15mm and 10mm (3/8") axles
‱ Integrated chain tensioner bolts
‱ Disc brake compatible with optional Helium PRO Disc Brake Mount
‱ Compatible with 20” x 1.75” BMX race tires

Specifications

‱ Color: Black / Metallic Caribic Blue / Galactic Ice Purple
‱ Top Tube Length: 22.25” (565mm)
‱ Chain Stay Length: 14.8” (376mm)
‱ Rider Area: 22.1” (564.2mm)
‱ Head Tube Angle: 74°
‱ Seat Tube Angle: 71°
‱ BB Height: 11.6” (294.64mm)
‱ Seat Tube Height: 9.1” (231mm)
‱ Wheel Size: 20” (406mm) x 1.75”
‱ Head Tube Size: Tapered 1-1/8” - 1.5” integrated headset
‱ Seat Post Size: 27.2mm
‱ Seat Clamp Compatibility: 31.8mm ID seat clamp
‱ Tubing Material: Hydroformed 6061 Alloy
‱ Bottom Bracket: BSA, 68mm wide
‱ Head Tube Length: 4.9” (125mm)
‱ Dropouts: 20mm slots with 15mm & 10mm adaptors included
‱ Brake System: Removable V-brake mounts, disc brake compatible
‱ Weight: 1.85kg (4.07lbs)
