Radio Race QUARTZ PRO XXL Frame
Radio Race QUARTZ PRO XXL Frame
Radio Race QUARTZ PRO XXL Frame

Radio Race QUARTZ PRO XXL Frame

parRADIO RACELINE
€579,99 - €889,99
€889,99
€889,99
€579,99 - €889,99
€889,99

TVA incluse, hors frais de port
UGSA100018396

The Radio Bikes Quartz Disc Frame is the next evolution of Radio's world championship-winning BMX race platform. Featuring the all-new Sliding Dropout Disc System (SDDS), this disc-brake-specific frame delivers outstanding performance, precise chain adjustment, and exceptional stiffness in an ultra-lightweight package.

Constructed from hydroformed 6061 alloy Paradigm tubing, the Quartz Disc Frame is engineered for maximum efficiency, responsiveness, and speed on the track. Internal brake cable routing keeps the setup clean and protected, while the forged and CNC-machined SDDS with integrated chain tensioners ensures easy wheel alignment and compatibility with both 10 mm and 15 mm rear axles.

Spécifications du produit :

Hydroformed 6061 alloy frame with Paradigm tubing

Disc-brake-specific design

Internal brake cable routing

Forged and CNC-machined Sliding Dropout Disc System (SDDS)

Integrated chain tensioners

Flat mount disc brake compatibility only

Designed for 140 mm rotors

Compatible with 120 mm rotors (hub and caliper compatibility should be confirmed)

Super lightweight race-focused construction

Developed from a 10-time World Championship-winning platform

Géométrie et compatibilité :

SpecificationValue

Top Tube Length21.75" (552 mm)

Chainstay Length14.8" (376 mm)

Rider Area551.9 mm

Head Tube Angle74°

Seat Tube Angle71°

Bottom Bracket Height11.6" (294.6 mm)

Seat Tube Height9.1" (231 mm)

Wheel Size20" × 1.75"

Head TubeTapered 1-1/8" – 1.5" (Integrated)

Head Tube Length4.9" (125 mm)

Bottom BracketBSA, 68 mm

Seat Post Diameter27.2 mm

Seat Clamp Size31.8 mm

DropoutsSDDS for 10 mm & 15 mm axles

Brake Mount

Flat Mount Disc Only

Available Colors

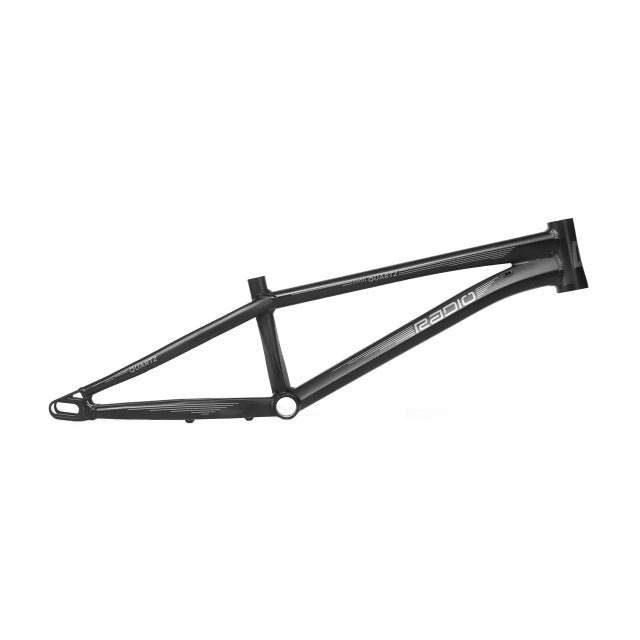

Black

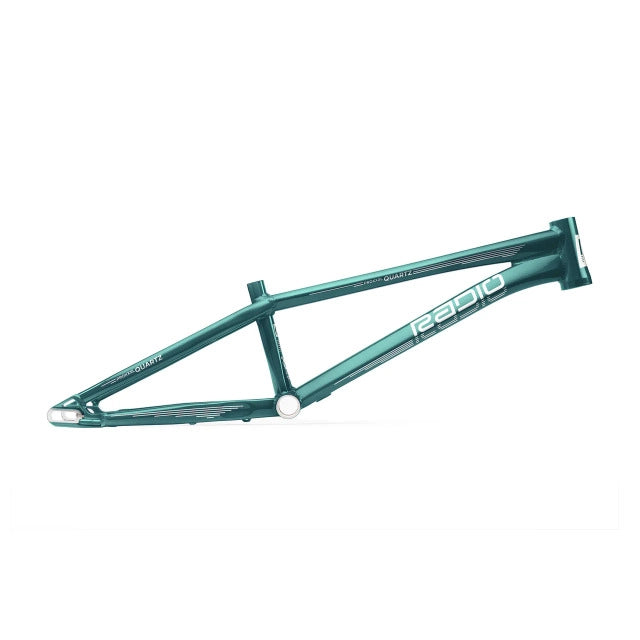

Spectral Space Green

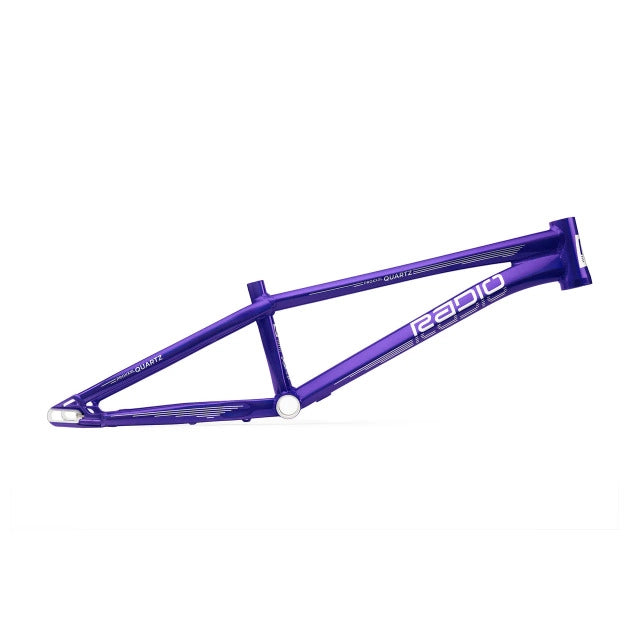

Spectral Abyss Purple

Mesures / Articles inclus :

Weight
1.76 kg (3.88 lbs)

Included
Radio Bikes Quartz Disc Frame

Sliding Dropout Disc System (SDDS)

Integrated chain tensioners

All SDDS mounting hardware
