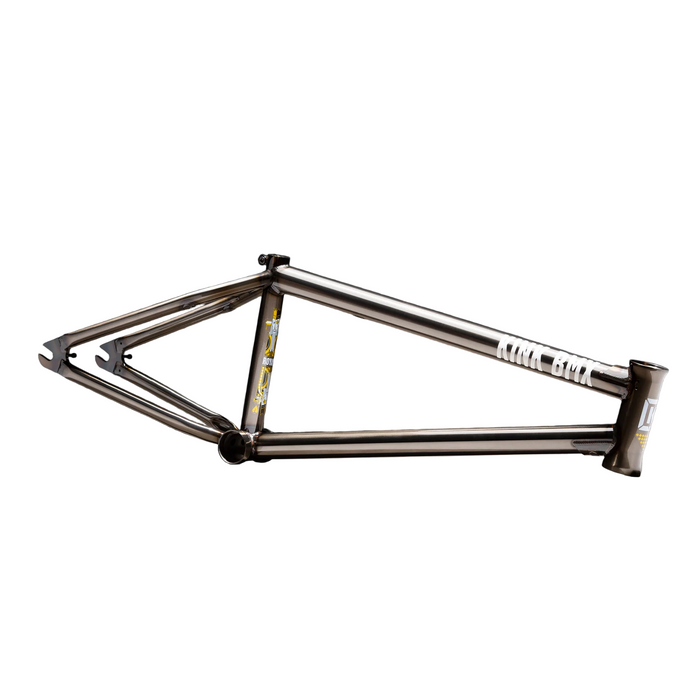

KINK ROYALE FRAME

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake lugs for those looking to install brakes (mount kit sold separately).

Geometry:
Toptube Sizes    20.5”, 20.75”, 21”, 21.25”
Chainstay Length    12.5" Slammed
Bottom Bracket Height    11.7"
Standover Height    9"
Headtube Angle    76°
Seattube Angle    71°
Headtube Height    5"

Tech Spec.
Material    100% 4130 Chromoly Tubing
Headtube    Integrated Campy Spec
Dropouts    Laser cut with Integrated Chain Tensioners
Bottom Bracket    Internally and Externally Machined Mid Size BB
Braking    Removable Through-Bolt Brake Mount System (Hardware Not Included)
Particulars    Toptube and Downtube Gussets
Integrated Seat Clamp
Interior Chainstay Forming for 2.55” Tire Clearance
CNC’d Seatstay Bridge with Kink Badge Inlay
Weight    5lb 4oz (20.5")
