BSD SAFARI V3 FRAME
by BSD
Original price
€413,44
-
Original price
€413,44
Original price
€413,44
€413,44
€413,44
-
€413,44
Current price
€413,44
Incl. VAT plus shipping
SKU 875800763

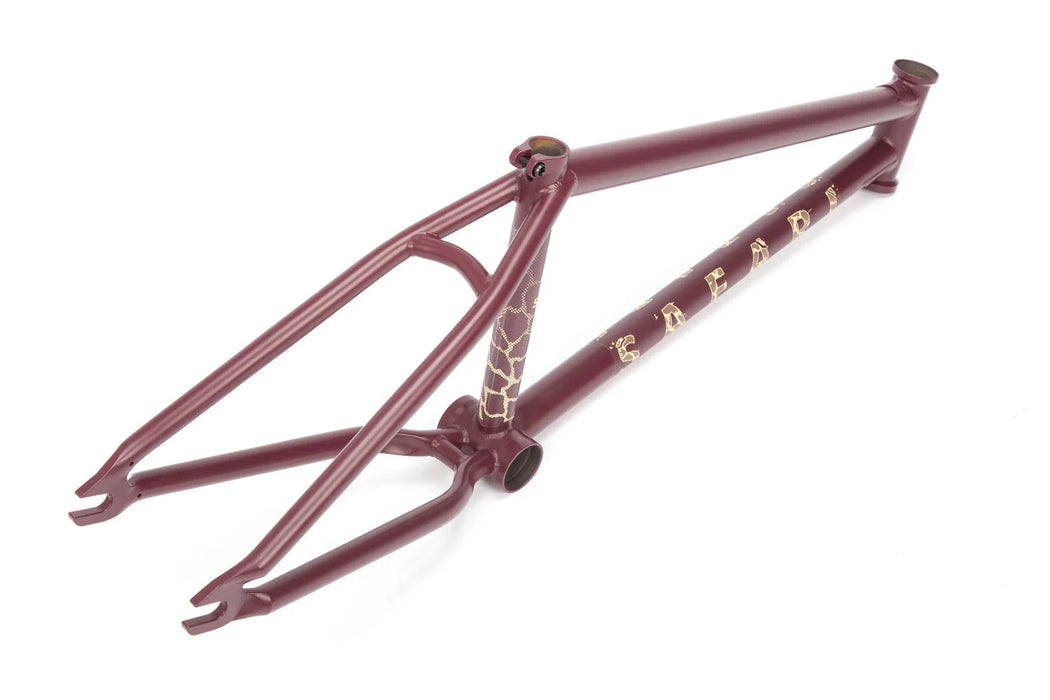

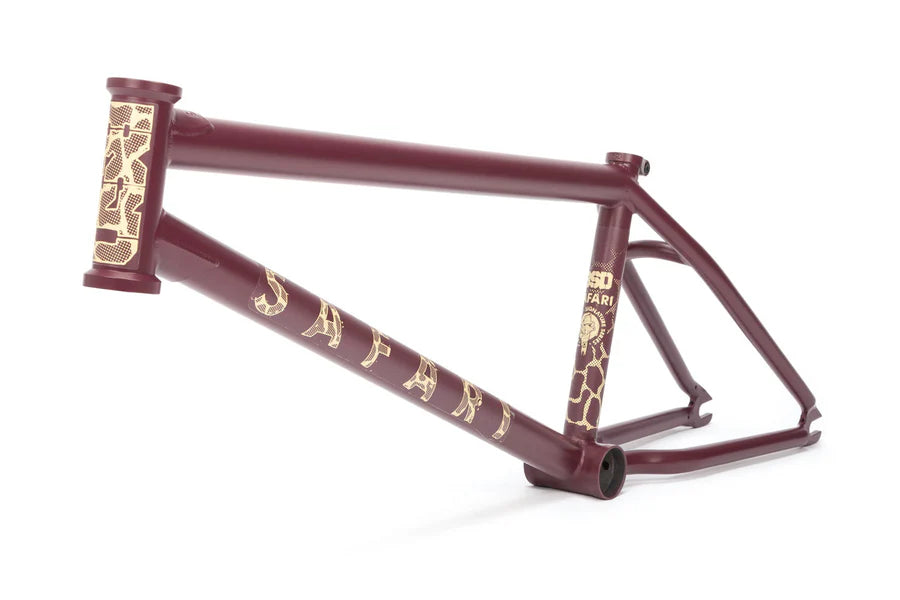

BSD SAFARI V3 FRAME
This is the latest version of Reed Stark's signature Safari frame, now updated with a shorter 12.8–13.2" rear end, which is half a link shorter than the previous version. It also features our Superscoop chainstay tubing for extra tire clearance when your wheel is slammed. The Safari frame is designed to Reed's specifications, with a super long front end paired with a short back end and a standard head angle. Simple, yet effective!
Tech specs
| Toptube lengths | 21.4" / 21.8" |
| Headtube angle | 75° |
| Headtube length | 123mm |
| Seattube angle | 71° |
| Rear end length | 12.8-13.2" |
| BB Height | 11.75" |
| Standover height | 9.5" |
| Weight | 5.3lbs |
| Brake mounts | none - brakeless |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Chainstay | SuperScoop tubing |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Heat treated 4130 CrMo / Invest cast |
