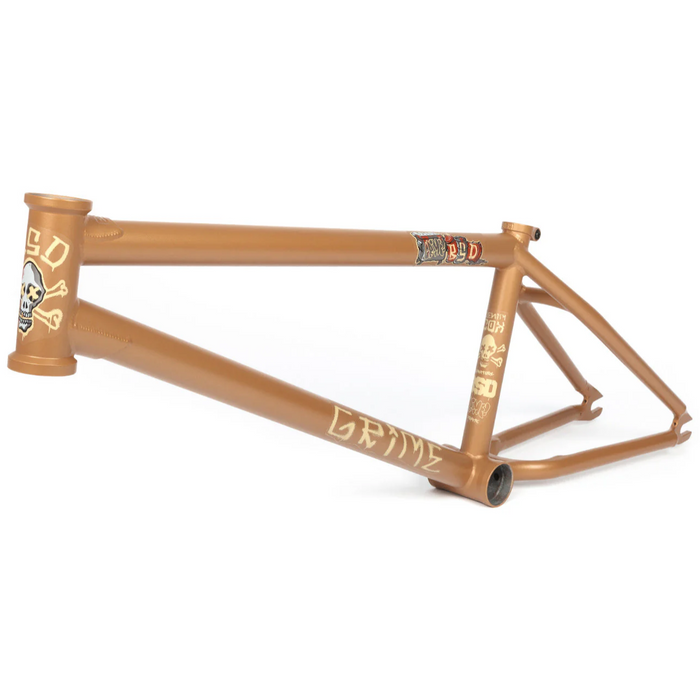

BSD GRIME FRAME
by BSD
Sold out
Original price
€393,26
-
Original price
€423,52
Original price
€393,26
€413,44
€393,26
-
€423,52
Current price
€413,44
Incl. VAT plus shipping
SKU 872800010
Denim Cox is a wild man, and the Grime frame is built to handle the abuse he dishes out every day! "MORE SPEED, LESS DOUBT!" Designed to Denim’s specifications, it features a steep 75.5° head angle, a 12.8–13.2” rear end length with an invest-cast chainstay yoke for added tire clearance, and a 9” standover height.
Tech specs
| Toptube lengths | 20.6" / 20.8" / 21" / 21.2" |
| Headtube angle | 75.5° |
| Headtube length | 117mm |
| Seattube angle | 71° |
| Rear end length | 12.8-13.2" |
| BB Height | 11.7” |
| Standover height | 9" |
| Weight | 5lbs |
| Brake mounts | none - brakeless |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Chainstay Yoke | Heat treated 4130 CrMo / Invest cast |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Heat treated 4130 CrMo / Invest cast |
