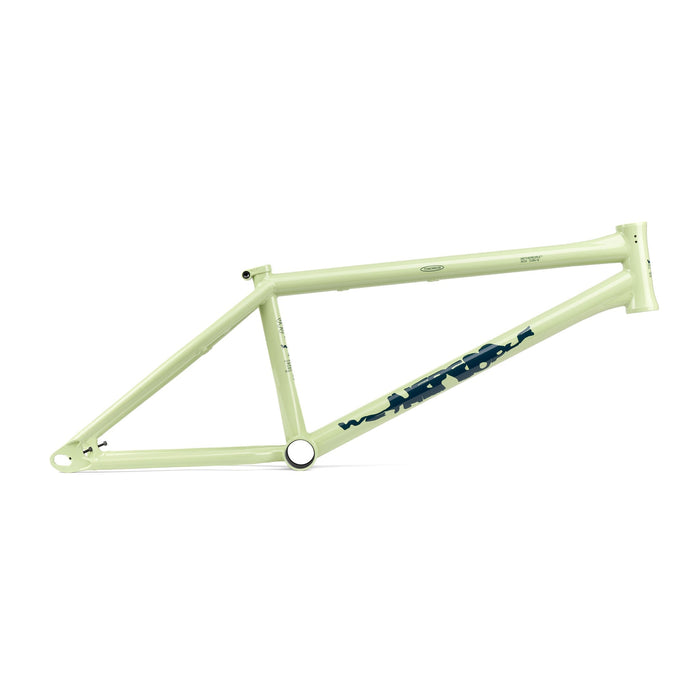

WETHEPEOPLE Tomorrow Frame

The TOMORROW Frame from WETHEPEOPLE is the next evolution of the Battleship, built exclusively for 14 mm female-axle and thru-axle (TA) hubs with 8 mm investment-cast closed dropouts.

Features

• Designed exclusively for female-axle and thru-axle (TA) hubs
• 8 mm thick investment-cast closed 14 mm dropouts with integrated chain tensioners
• Hydroformed top, down and seat tubes; oversized 20.5 mm seat stays
• Clearance for 2.5" tires
• Removable U-brake pivots and rotor tabs; lifetime guarantee

Specifications

• Tubing: Butted Japanese seamless 4130 CrMo
• Bottom bracket: 74 mm Mid, CNC-machined, heat-treated, extra thick
• Head tube: 127 mm, CNC-machined, integrated headset, rotor-tab holes
• Dropouts: 8 mm investment cast, 14 mm closed slot, integrated tensioners
• Brakes: Removable pivot-3 brake mounts (hardware not included)
• Compatibility: Female and thru-axle hubs only – not compatible with male axle hubs

Geometry

• Chainstay: 12.7" – 13.25" (optimised for 12.75"/13" with 25/9)
• Head tube angle: 75.5°
• Seat tube angle: 71°
• BB height: 11"
• Standover: 9.5"
