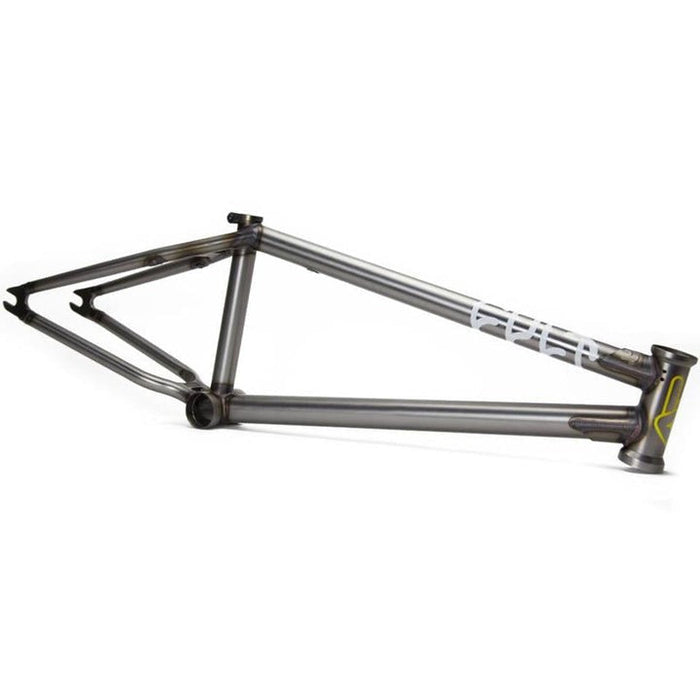

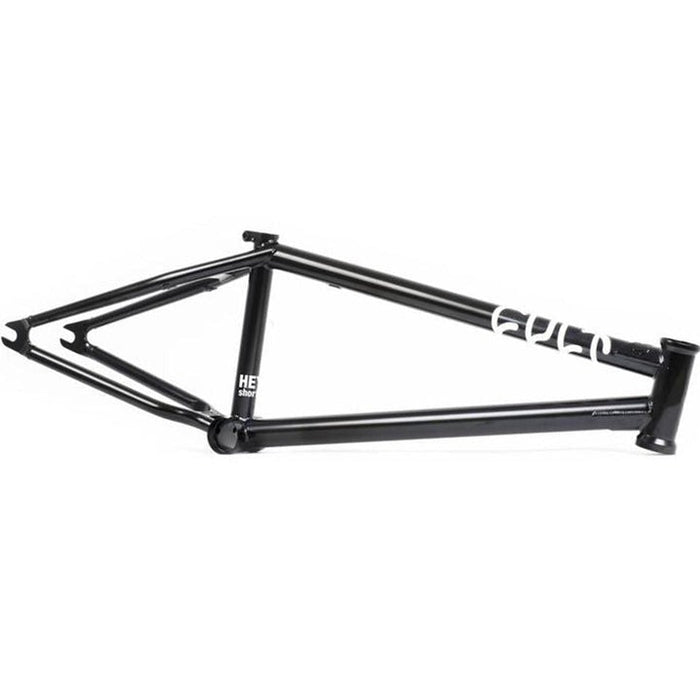

CULT Shorty IC Frame

The CULT Shorty IC is a 20" street frame with a steep 75.5° head tube angle and a short 13" rear end. It is built from Cult classic chromoly tubing with investment cast dropouts.

Features

• Top tube and down tube gussets
• Integrated head tube and externally machined Mid BB shell
• Investment cast seat clamp and seatstay bridge
• S-bend chainstays with room for 2.40" tires
• Tapered seatstays with removable brake mounts
• Investment cast, heat-treated 5 mm dropouts

Specifications

• Material: 100% 4130 chromoly (Cult classic tubing)
• Wheel Size: 20"
• Headset: Integrated
• Bottom Bracket: Mid
• Seat Clamp: Integrated, 25.4 mm seat post
• Dropouts: 14 mm, investment cast
• Brake Mounts: Removable (sold separately)
• Max. Tire Width: 2.40"

Geometry

• Top Tube: See variants
• Chainstay: 13" – 13.3"
• Head Tube Angle: 75.5°
• Seat Tube Angle: 70°
• BB Height: 11.8"
• Standover: 8.65"
