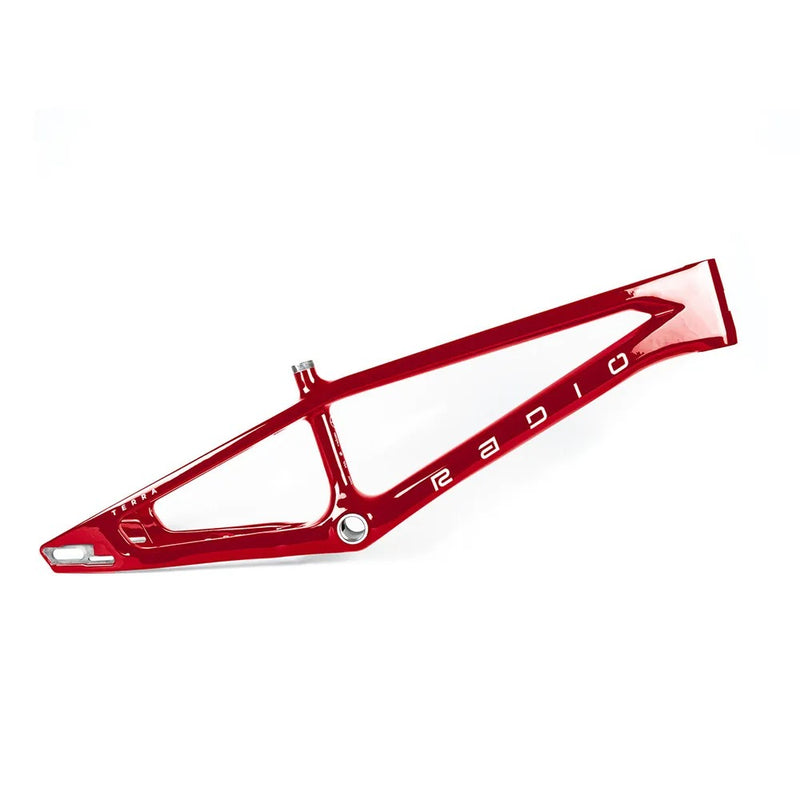

RADIO Raceline TERRA Disc Pro XXXL Frame

Full-monocoque TORAYCA carbon race frame in Pro XXXL size from RADIO RACELINE for taller riders, built exclusively for flat-mount disc brakes.

Features

• Full monocoque TORAYCA carbon fiber construction
• Disc-specific design with internal cable routing
• Forged and CNC-machined Sliding Dropout Disc System (SDDS) with integrated chain tensioner
• Reinforced stays, bottom bracket and head tube areas
• Designed for 140 mm and 120 mm rotors

Specifications

• Material: TORAYCA carbon fiber
• Wheel size: 20" x 1.75"
• Tire clearance: Up to 2.0" (50 mm)
• Head tube: Tapered 1-1/8" – 1.5" integrated, 120 mm
• Bottom bracket: BSA, 68 mm
• Seat post: 27.2 mm
• Seat clamp: 31.8 mm ID
• Dropouts: SDDS for 10 mm and 15 mm axles, hardware included
• Brakes: Flat-mount disc only (not V-brake compatible)
• Colors: Black, Vampire Red

Geometry

• Top tube: 22.25" (564.9 mm)
• Chainstay: 14.7" (374 mm)
• Head tube angle: 74.5°
• Seat tube angle: 71°
• BB height: 11.6" (294.6 mm)
• Seat tube height: 9.37" (238 mm)
