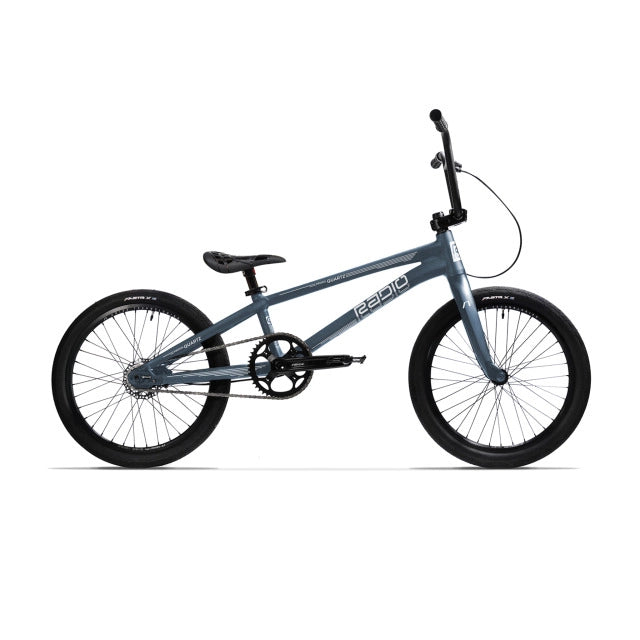

Radio Race QUARTZ PRO XXL Complete Bike 20"

Radio Race QUARTZ PRO XXL Complete Bike 20"

by RADIO RACELINE
€1.779,99 - €1.779,99
€1.779,99
€1.779,99
€1.779,99 - €1.779,99
€1.779,99

Incl. VAT plus shipping
SKU A100031418

The Radio Raceline Quartz Pro XXL is the flagship model of the Radio BMX race lineup, built around the six-time World Championship-winning Quartz Disc Frame. Designed for elite racers, it combines an ultra-lightweight hydroformed alloy chassis with a no-compromise Pro-level specification to deliver maximum speed, stiffness, and control.

Equipped with premium ARISE and Radio Raceline components throughout, the Quartz Pro XXL features a Solar Carbon fork, ARGON PRO tubeless-ready rims, BRAVO sealed hubs, and a powerful ARISE XENON hydraulic disc brake system. The latest Quartz Disc frame also introduces Sliding Disc Dropouts (SDDS) with integrated chain tensioners, flat mount brake compatibility, and clean internal cable routing for a refined race-ready setup.

Product Specifications:

Quartz Disc hydroformed 6061-T6 alloy race frame

Tapered head tube with internal headset

Sliding forged dropouts with integrated chain tensioners

Internal brake cable routing

Flat mount hydraulic disc brake system

ARISE Quartz Pro carbon fork with 31 mm offset

Radio Raceline Neon Pro multi-butted chromoly handlebar

ARISE Neon Pro CNC-machined alloy stem

ARISE XENON hydraulic rear disc brake with 120 mm rotor

ARISE XENON PRO 2-piece alloy crankset (180 mm, 24 mm spindle)

External BSA24 sealed bottom bracket

ARISE XENON PRO 43T alloy sprocket

KMC Z1eHX chain

ARISE BRAVO fully sealed front and rear hubs

ARISE ARGON PRO flash-welded, tubeless-ready alloy rims

Tioga FASTR race tires (20" × 1.75" front / 20" × 1.60" rear)

Radio Raceline seat/post combo

ARISE XENON quick-release seat clamp

Geometry & Compatibility:

Top Tube Length21.75"

Chainstay Length15.25"

Head Tube Angle74°

Seat Tube Angle71°

Bottom Bracket Height11.6"

Handlebar Geometry

Rise8.5"

Width29"

Backsweep6.5°

Upsweep2.5°

Color
Dark Blue Grey Metallic

Measurements / Included items:

Weight
8.89 kg (19.96 lbs)

Included
Complete Radio Raceline Quartz Pro XXL BMX Race Bike

ARISE Quartz Pro Carbon Fork

ARISE XENON Hydraulic Disc Brake with 120 mm Rotor

ARISE ARGON PRO Tubeless-Ready Wheelset

Tioga FASTR Tires

Radio Raceline Seat/Post Combo
