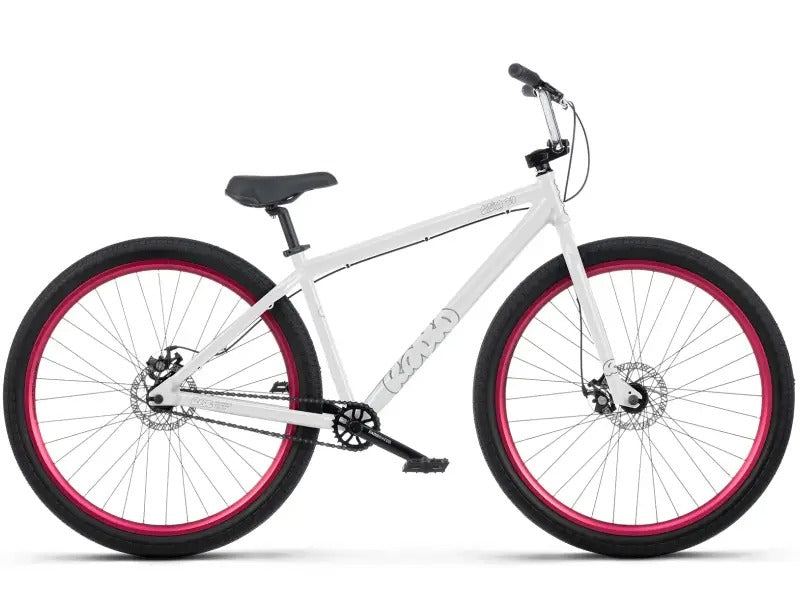

RADIO Legion 29 Complete Bike

The Legion 29 from RADIO is a 29" wheelie bike with a light 6061-T6 alloy frame, wheelie-specific geometry, a full CrMo fork and bar and mechanical disc brakes front and rear – made for the streets, one wheel or two.

Features

• Lightweight RADIO Legion 29 6061-T6 alloy frame with wheelie-specific geometry
• Full CrMo fork and 4130 CrMo bar
• Tektro Aries mechanical disc brakes with 160 mm rotors front and rear
• 3-piece CrMo cranks, 175 mm
• Double-wall rims with 2.3" tires
• Quick-release seat clamp

Specifications

• Frame: RADIO Legion 29, 6061-T6 alloy
• Fork: RADIO Legion 29, full CrMo, 30 mm offset
• Headset: FSA No.28 A-headset
• Stem: Salt Comp topload, 50 mm reach
• Handlebar: RADIO Legion, full 4130 CrMo – 6.1" rise, 30" width
• Grips: RADIO Frequency XL, flangeless, 160 mm
• Brakes: Tektro Aries mechanical disc, front and rear, 160 mm rotors
• Brake levers: Tektro RS-360A
• Cranks: RADIO Pro, 3-piece CrMo, 175 mm, 8-spline
• Sprocket: RADIO Legion, alloy, 26T
• Bottom bracket: RADIO BSA19, sealed bearing
• Chain: Salt AM
• Hubs: RADIO Pro-DJ disc front, sealed; RADIO Pro disc cassette rear, 12T
• Rims: RADIO DB35, double wall
• Tires: RADIO Legion 29, 29" x 2.3"
• Seat: RADIO Legion, railed
• Seat post: RADIO SP228, micro-adjust, alloy
• Seat clamp: RADIO Quick Release, alloy
• Pedals: RADIO Pro, nylon/fibreglass
• Color: Matt White
• Weight: 15.04 kg

Geometry

• Top tube: 23.5"
• Chainstay: 18"
• Head tube angle: 71°
• Seat tube angle: 71°
• BB drop: 65 mm
• Standover: 430 mm
