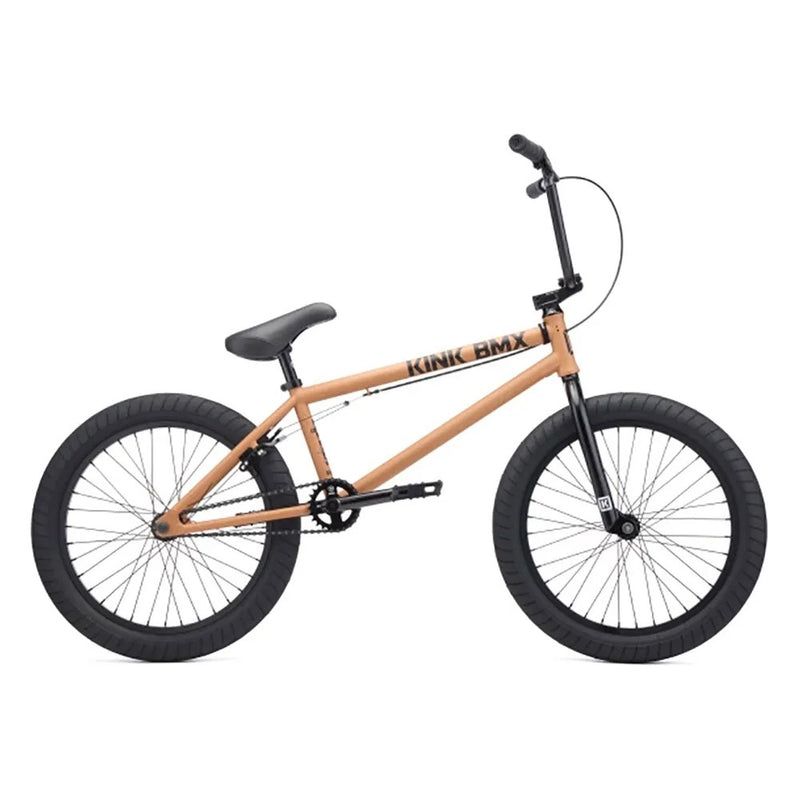

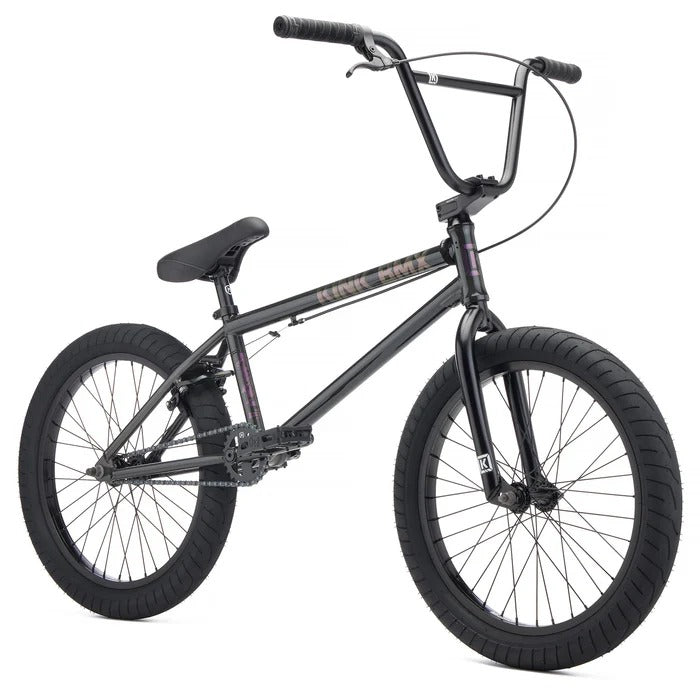

KINK SETUP XL 20 Complete Bike

The Setup XL 2027 from KINK is the XL version of the Setup, with a 21" top tube for taller riders and a 4130 chromoly front triangle, fork steerer and handlebars.

Features

• 4130 chromoly front triangle, fork steerer and handlebars
• XL sizing for taller riders
• Stealth seat system
• Sealed headset, bottom bracket and cassette rear hub
• Available in Iridescent Black and Oxide Orange

Specifications

• Frame: Kink Setup XL, 4130 chromoly front triangle
• Fork: Kink Circuit, 4130 chromoly steerer, tapered legs
• Handlebars: Kink T925, 9.25", 100% 4130 chromoly
• Stem: Kink Bold HRD, 50 mm
• Grips: Kink Ace Flangeless
• Headset: Mission Sealed Integrated (41.8 x 45)
• Brakes: Mission Cease V2, Mission Token lever, Mission L3 Linear cable
• Cranks: Kink Ridge 3-piece tubular chromoly, 170 mm, 8 spline
• Bottom bracket: Sealed Mid, 19 mm
• Sprocket: Mission Breach 25T
• Chain: Mission 410
• Pedals: Kink Hemlock
• Front hub: Mission Covert, unsealed, 3/8" axle
• Rear hub: Mission Engage sealed cassette, 14 mm, 9T driver
• Rims: Mission X7
• Tires: Kink Sever 2.4"
• Seat: Kink Plymouth Stealth
• Seat post: Mission Stealth
• Seat clamp: Mission Slim Clamp
• Weight: approx. 12,247 g (27 lb 0 oz)

Geometry

• Top tube: 21"
• Chainstay: 13.25"
• Head tube angle: 75°
• Seat tube angle: 71°
• Standover height: 9"
• BB height: 11.6"
• Fork offset: 30 mm
