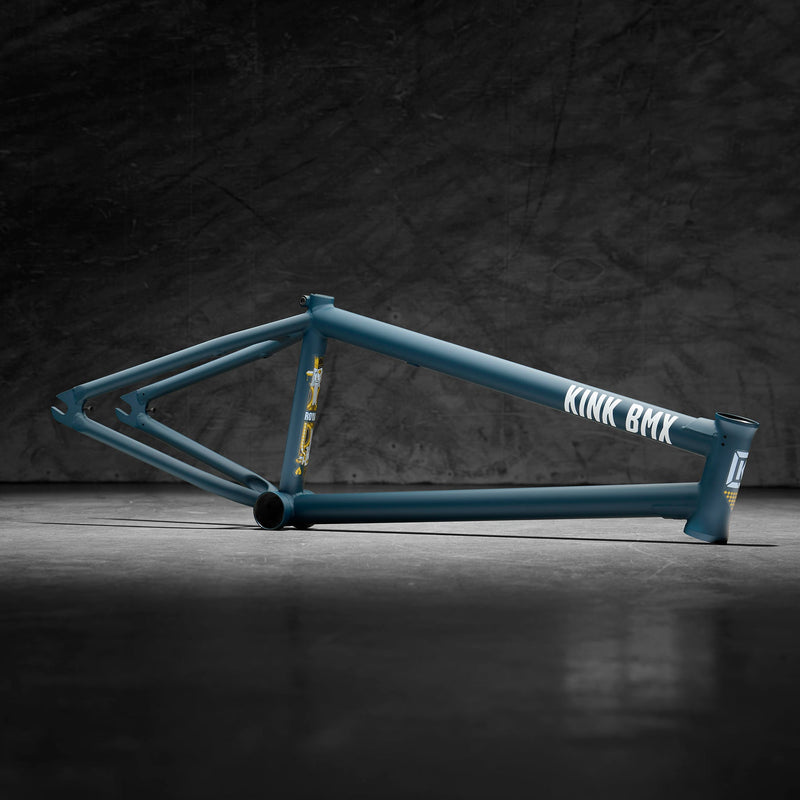

KINK ROYALE Frame

The Kink Royale is a compact, responsive BMX frame built for modern street and plaza riding, combining 100% 4130 chromoly construction with progressive geometry and reinforced gussets.

Features

• 100% 4130 chromoly tubing for high strength and stiffness
• Progressive geometry with a 76° headtube angle and 12.5" slammed chainstays
• Integrated seat clamp and chain tensioners
• Toptube and downtube gussets for added durability
• 2.55" tire clearance through custom interior chainstay forming
• Removable brake mounts for optional brake installation
• CNC’d seatstay bridge with Kink badge inlay

Specifications

• Toptube Sizes: 20.5", 20.75", 21", 21.25"
• Chainstay Length: 12.5" slammed
• Bottom Bracket Height: 11.7"
• Standover Height: 9"
• Headtube Angle: 76°
• Seattube Angle: 71°
• Headtube Height: 5"
• Material: 100% 4130 chromoly tubing
• Headtube: Integrated Campy spec
• Dropouts: Laser-cut with integrated chain tensioners
• Bottom Bracket: Internally and externally machined Mid-size BB
• Braking: Removable through-bolt brake mount system
• Tire Clearance: Up to 2.55"
• Weight: 5 lb 4 oz (20.5")
