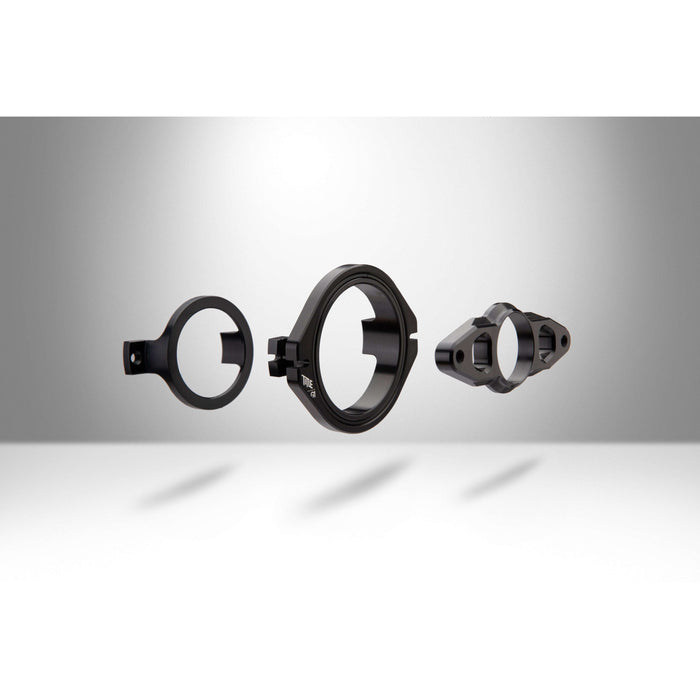

TITLE MTB G1 Gyro Brake System

The G1 Gyro Brake System from TITLE MTB is an MTB-specific gyro machined in Canada, offered in two sizes depending on head tube diameter.

Features

• MTB-specific design
• Machined from Canadian 6061-T6 aluminum
• Low-friction, wear-resistant machined Delrin bushing
• Two sizes to suit head tube outside diameter

Specifications

• Material: 6061-T6 aluminum, Delrin bushing
• Size Small: Head tube outside diameter 54 mm or less; gyro bottom 69 mm
• Size Large: Head tube outside diameter 54 mm or greater; gyro bottom 74 mm
• Steerer: Requires 20 mm extra steerer length
• Headset: Frame with press-in top cup recommended; gyro tabs not included
• Included: Lever, cables and calliper not included
• Intended use: Dirt jump / slopestyle, skatepark / street

Installation

• Use with G1 cables and G1 lever for best set-up
• Keep the bushing lightly lubricated
• Professional installation recommended
