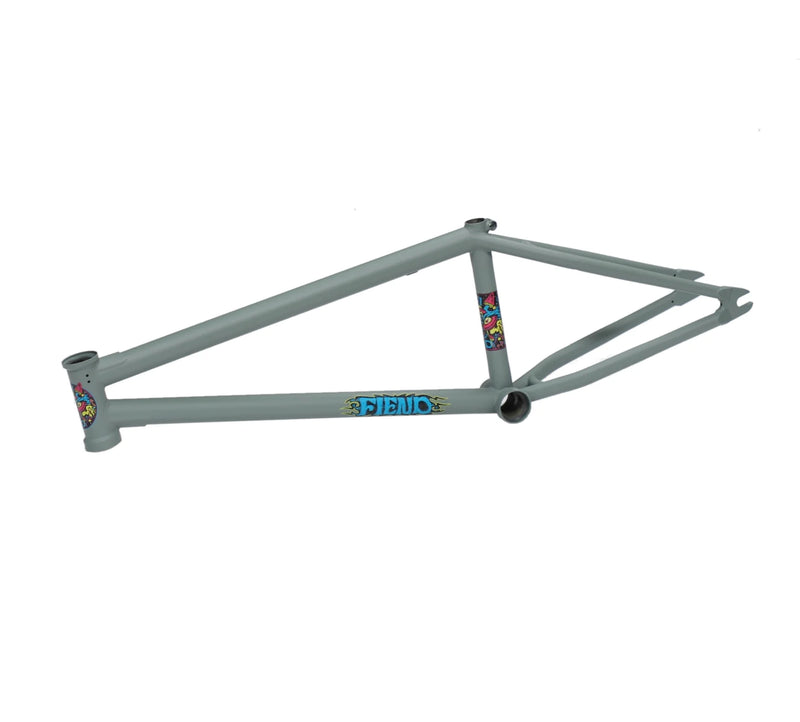

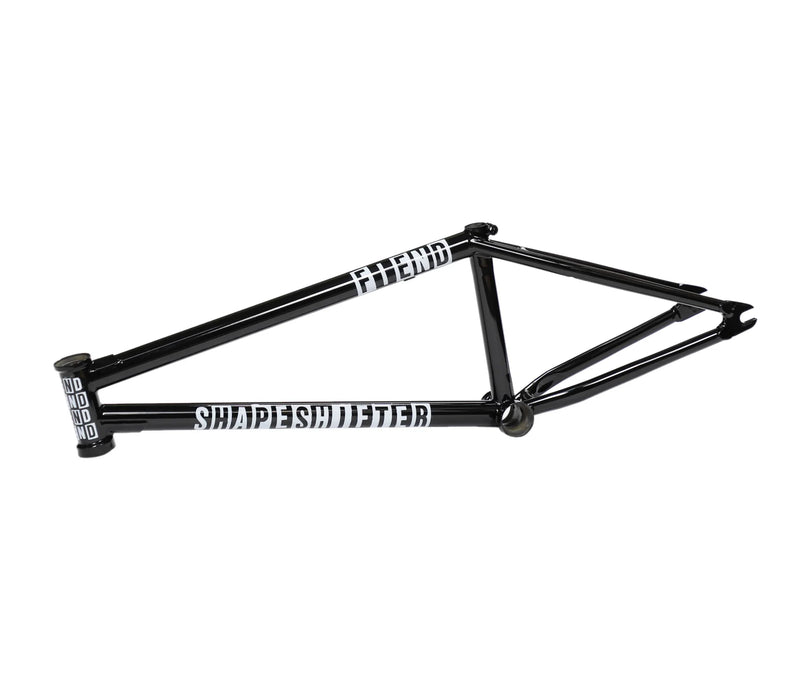

FIEND Shapeshifter 320 Frame
FIEND Shapeshifter 320 Frame
FIEND Shapeshifter 320 Frame

FIEND Shapeshifter 320 Frame

by FIEND
€419,99 - €419,99
€419,99
€419,99
€419,99 - €419,99
€419,99

Incl. VAT plus shipping
SKU 616801011

The FIEND Shapeshifter 320 is a heat-treated 4130 CrMo BMX frame with a compact 12.75" / 320 mm slammed chainstay and 75.5° head tube angle. The short rear end is designed for responsive street riding.

Externally and internally gusseted main tubes, a heat-treated Mid bottom bracket and 8 mm investment-cast dropouts with integrated chain tensioners provide the main construction details.

Key Features

  • Heat-treated 4130 CrMo construction
  • 12.75" / 320 mm slammed chainstay
  • Double-butted top tube
  • 8 mm investment-cast dropouts with integrated chain tensioners
  • Flush-mounted brake lugs

Specifications

  • Material: Heat-treated 4130 CrMo
  • Top Tube / Frame Size: 20.5" / 20.75" / 21" / 21.25"
  • Head Tube Angle: 75.5°
  • Seat Tube Angle: 71°
  • Chainstay: 12.75" / 320 mm slammed
  • BB Height: 11.625"
  • Standover: 9"
  • Head Tube: Heat-treated, tapped for gyro tabs
  • Bottom Bracket: Heat-treated Mid
  • Dropouts / Axle: 8 mm investment-cast with integrated chain tensioners
  • Brake Mounts: Flush-mounted lugs; hardware sold separately
  • Seat Clamp: Integrated
  • Weight: 5.1 lbs (20.5")
Product Specifications:

Frame material: Heat-treated 4130 chromoly

Tubing: Double-butted top tube, gusseted top and down tube

Head tube: Integrated headset compatible

Bottom bracket: Mid BB shell

Seat clamp: Integrated

Dropouts: 8 mm investment-cast dropouts with integrated chain tensioners

Brake mounts: Removable (brake mounts not included)

Gyro tabs: Drilled (gyro tabs not included)

Seatpost size: 25.4 mm

Weight: Approx. 5.1 lb (reference size)

Geometry & Compatibility:

Top tube lengths: 20.5", 20.75", 21", 21.25"

Chainstay length: 320 mm (12.75") slammed

Head tube angle: 75.5°

Seat tube angle: 71°

Standover: 9"

Bottom bracket height: 11.625"

Wheel size compatibility: 20" BMX

Rear axle: 14 mm compatible with 8 mm dropouts (standard BMX setup)

Seatpost size: 25.4 mm

Headset: Integrated (IS) compatible

Brakes/gyro: Removable brake mounts and gyro tabs supported (hardware not included)

Measurements / Included items:

Available Top Tube Sizes: 20.5", 20.75", 21", 21.25"

Chainstay Length: 320 mm

Standover Height: Approx. 9"

Bottom Bracket Height: 11.625"

Integrated seat clamp included

Dropouts with integrated chain tensioners included

Brake hardware and headset sold separately
