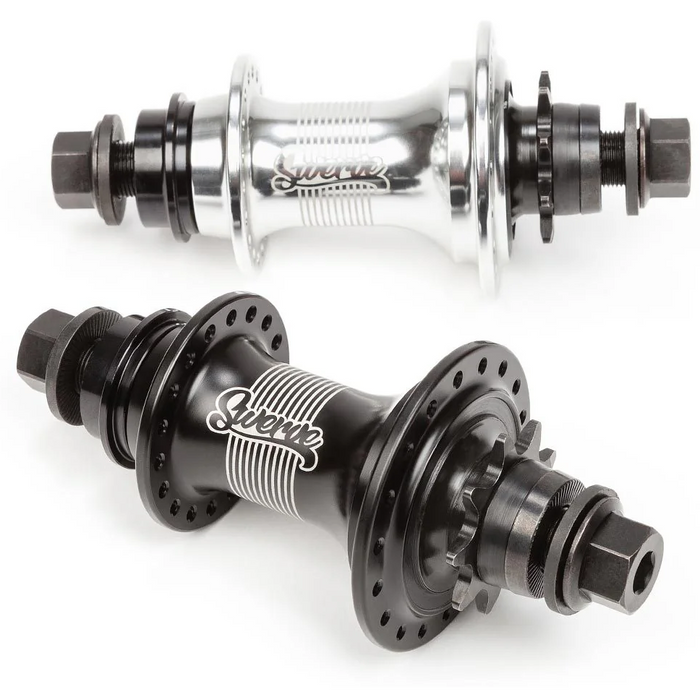

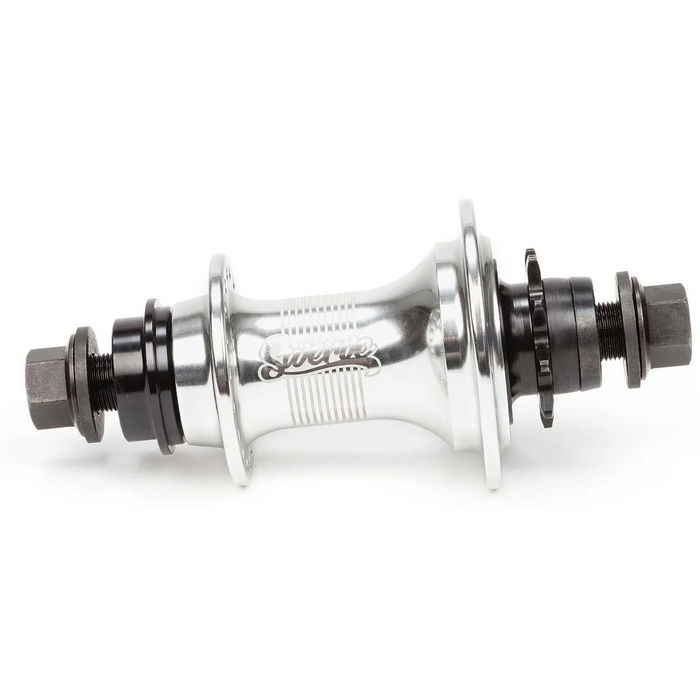

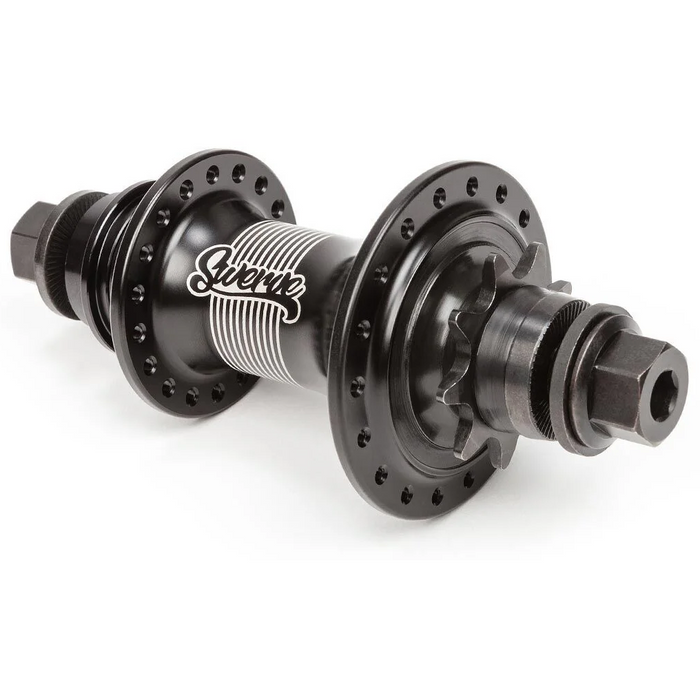

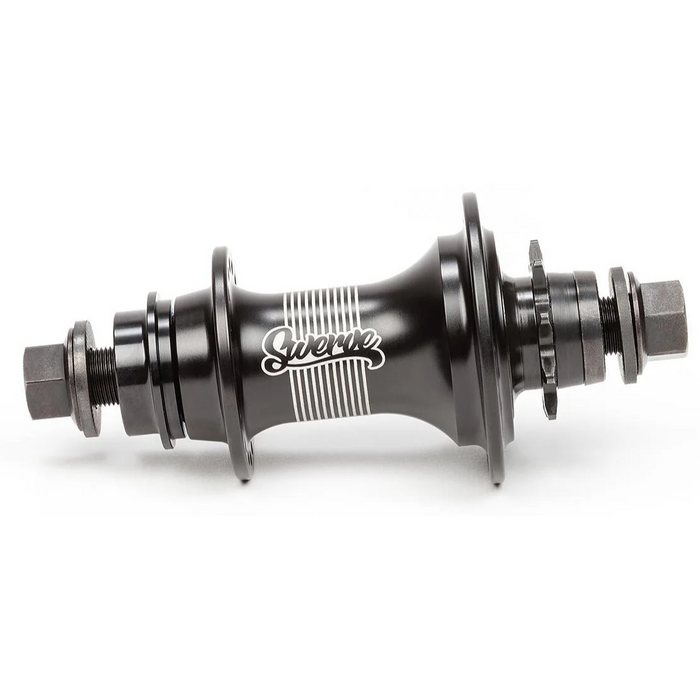

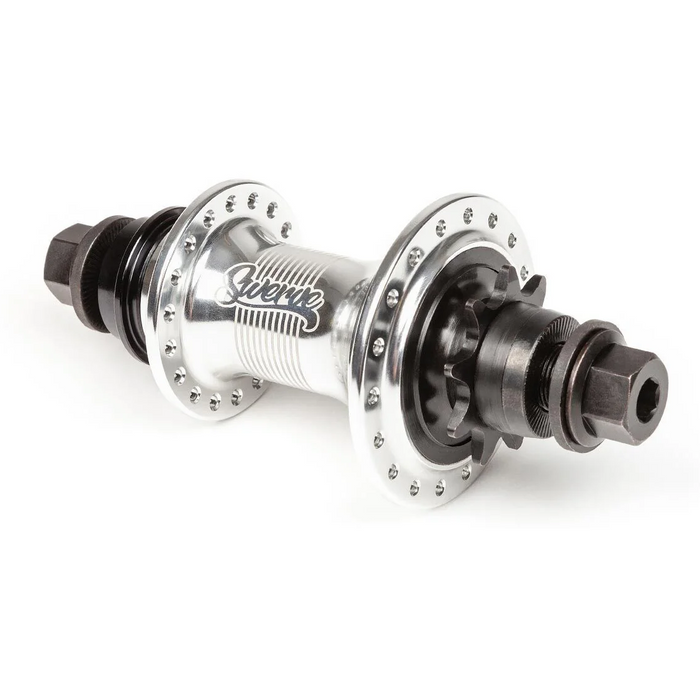

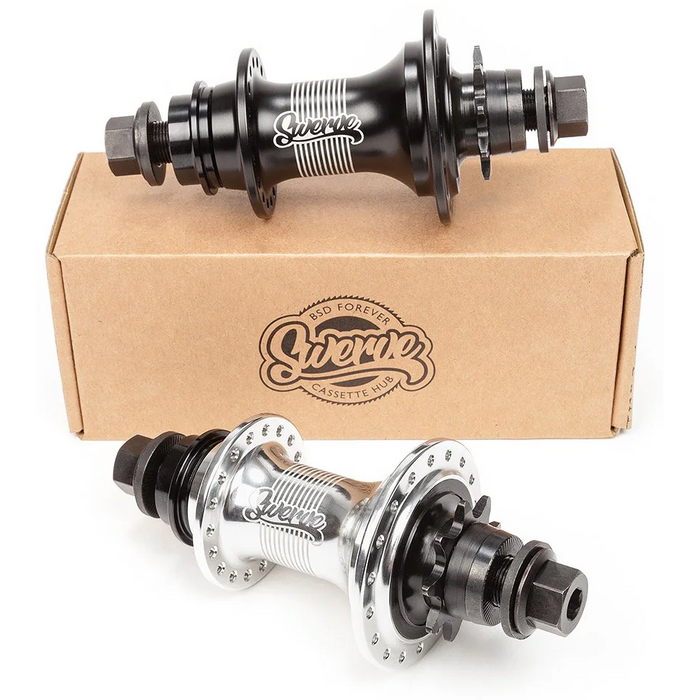

BSD Swerve Cassette Hub Female

The Swerve is a cassette hub from BSD with ultra-fast engagement from a 150-tooth ratchet ring and individually toothed pawls.

Features

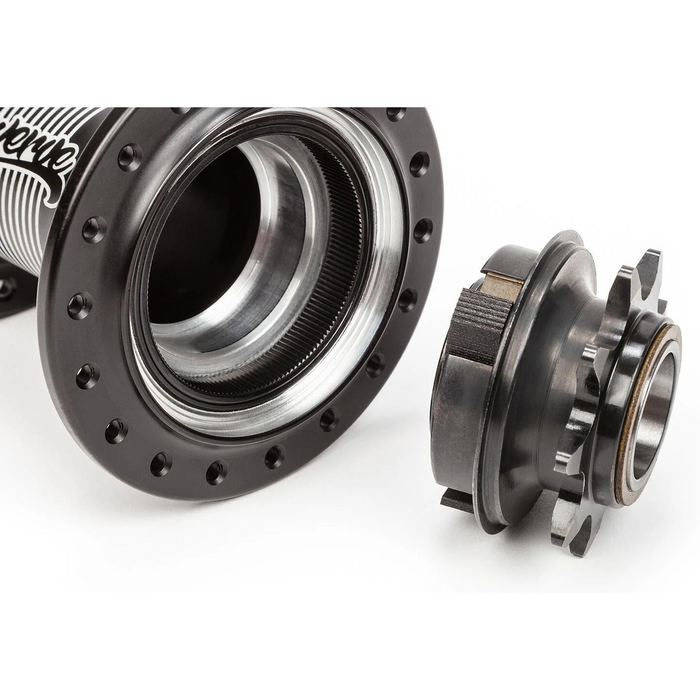

• 150-tooth ratchet ring for an almost non-existent pedal gap
• Shares parts with the Back Street Pro: 14 mm female bolts, chromoly cones, 6903 bearings

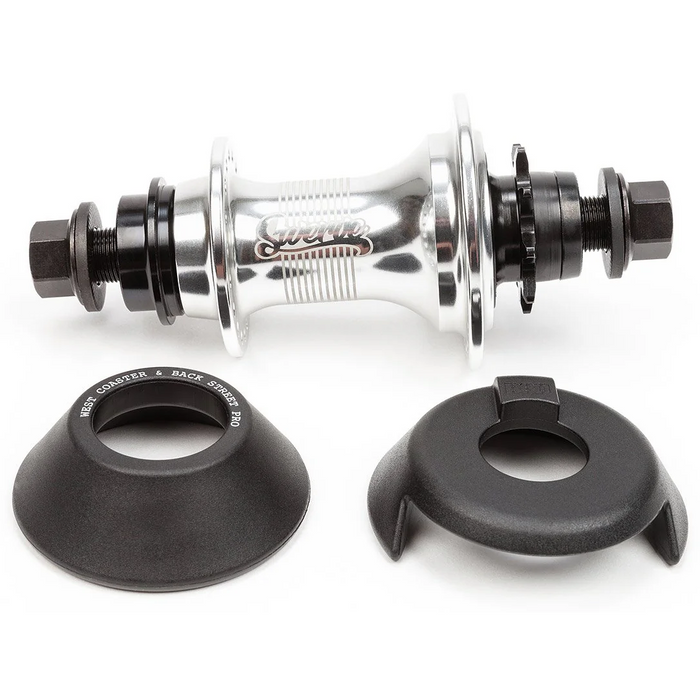

• Hub guards available separately (drive and non-drive side)

Specifications

• Shell: 6061-T6 aluminum, 36 holes
• Axle: Female 14 mm, 4140 heat-treated chromoly
• Axle nuts/bolts: 4130 heat-treated chromoly
• Drive side: RHD / LHD
• Compatible hub guards: Jersey Barrier Drive Side / Jersey Barrier Swerve Cassette
• Flange diameter: 67 mm (drive side) / 54 mm (non-drive side)
• Spoke hole PCD: 58.5 mm (drive side) / 45 mm (non-drive side)
• Center to flange: 26 mm
• Weight: 464 g
