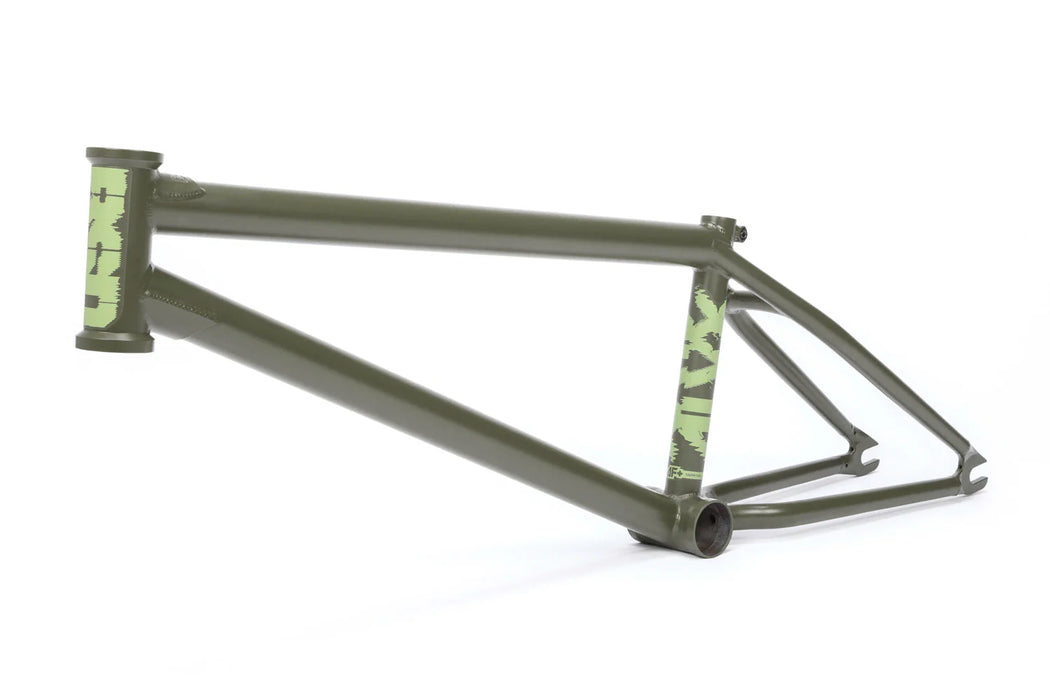

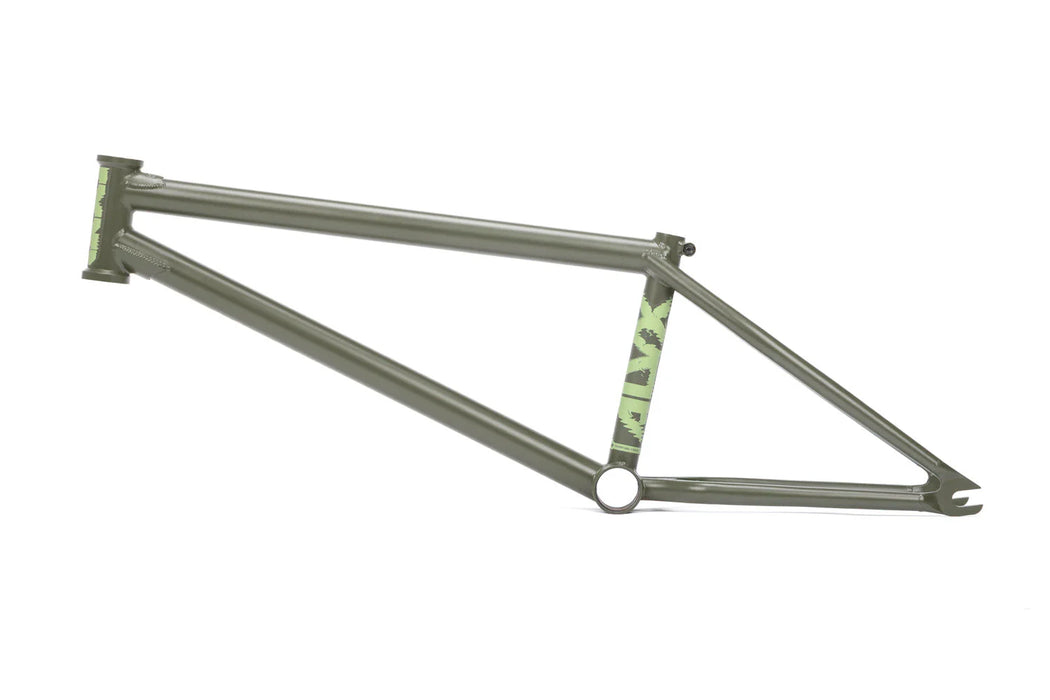

BSD ALVX AF+ FRAME

BSD ALVX AF+ Frame – Alex Donnachie Signature BMX Frame

The BSD ALVX AF+ Frame is the latest evolution of Alex Donnachie’s signature frame, designed for the most technical street riders.
It keeps the super-tech geometry and ultra-short rear end of the original ALVX, now upgraded with a new invest-cast chainstay yoke that improves tire clearance and makes the rear triangle even stiffer — and it looks incredible too.

Built from Sanko Japanese seamless 4130 Chromoly, the ALVX AF+ offers top-tier strength, low weight, and unmatched responsiveness. This frame is made to handle anything from ledge lines to heavy street combos with total precision.

Key Features

• Alex Donnachie signature BSD BMX frame

• Sanko 4130 CrMo tubing, triple-butted and seamless

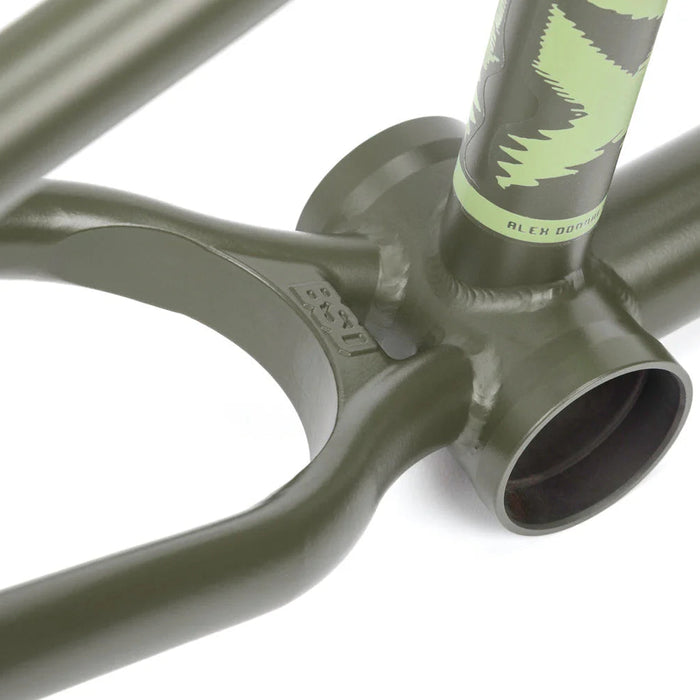

• Updated invest-cast chainstay yoke – stiffer and better tire clearance

• 75.5° head tube angle for super-responsive front-end feel

• Ultra-short 12.5–13" rear end for modern street control

• Brakeless setup for clean look and maximum clearance

• Lightweight & durable – only 2.27 kg (5 lbs)

Tech Specs

• Top Tube: 20.3" / 20.6" / 20.8" / 21" / 21.2"

• Head Tube Angle: 75.5°

• Head Tube Length: 117 mm

• Seat Tube Angle: 71°

• Rear End: 12.5" – 13"

• BB Height: 11.7"

• Standover: 8.7"

• Weight: 2.27 kg / 5 lbs

• Material: Sanko Japanese seamless 4130 CrMo / triple-butted
