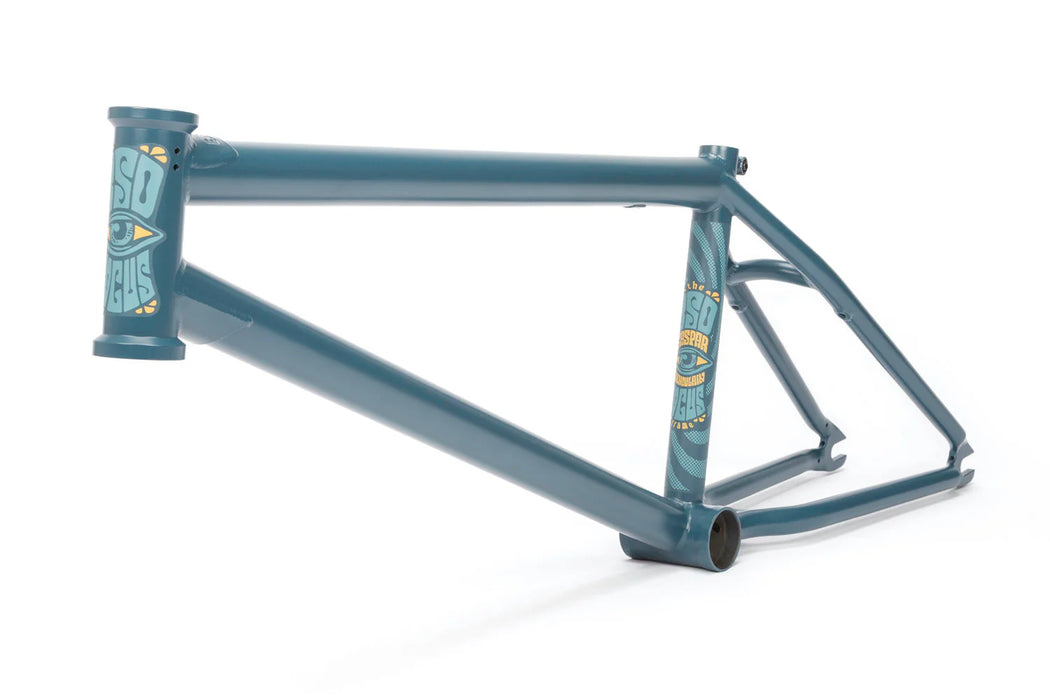

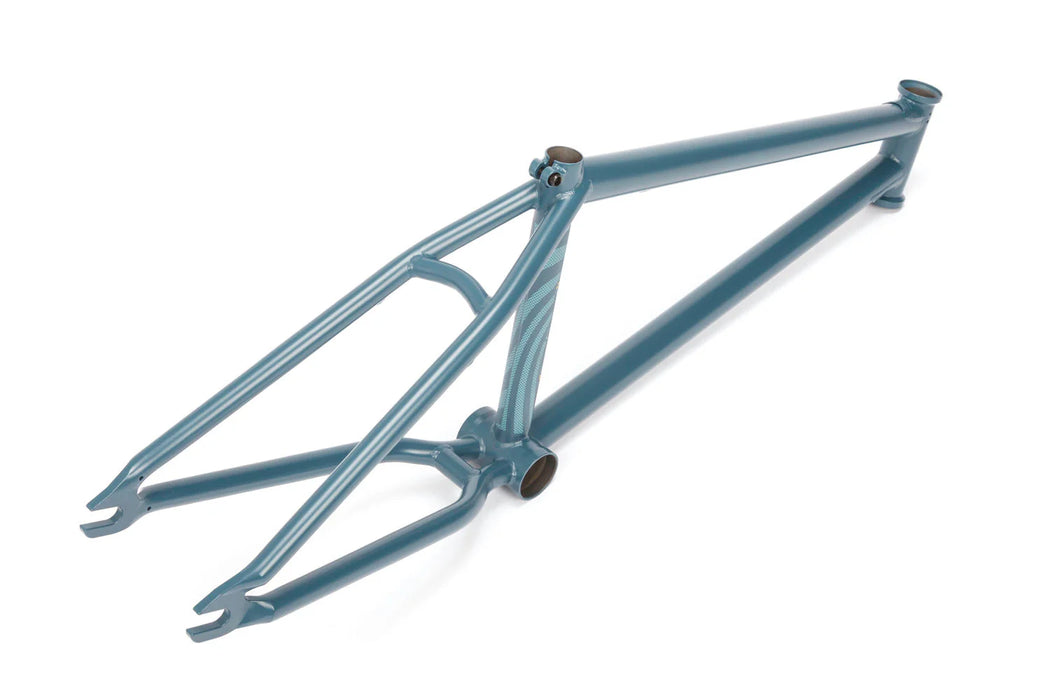

BSD FOCUS FRAME

BSD Focus Frame – Gaspar Guendulain Signature

Introducing the BSD Focus Frame, the brand-new signature frame of street style technician Gaspar Guendulain. With a geometry that bucks the trend of ultra-short street frames, the Focus is built for riders who want more stability, control, and a responsive feel without sacrificing flow.

At the heart of the Focus is a longer 13.5"–14" rear end, a taller 10" standover, and a unique 72° seat tube angle, designed to push the seat slightly forward — perfect for pinching during barspins. It’s modern street geometry, reimagined.

🛠️ Tech Specs:

• Top Tube Lengths: 20.8" / 21" / 21.2" / 21.5" – Gaspar’s preferred size

• Head Tube Angle: 75.2° – responsive but not twitchy

• Seat Tube Angle: 72° – ideal for barspin pinch and riding style

• Rear End Length: 13.5"–14" – longer, stable, and still nimble

• Bottom Bracket Height: 11.7"

• Standover Height: 10" – big & bold for classic style and frame control

• Weight: 5 lbs (approx. 2.27 kg)

• Brake Mounts: Removable – brake kit sold separately

• Material: Triple-butted Sanko Japanese seamless 4130 CrMo tubing

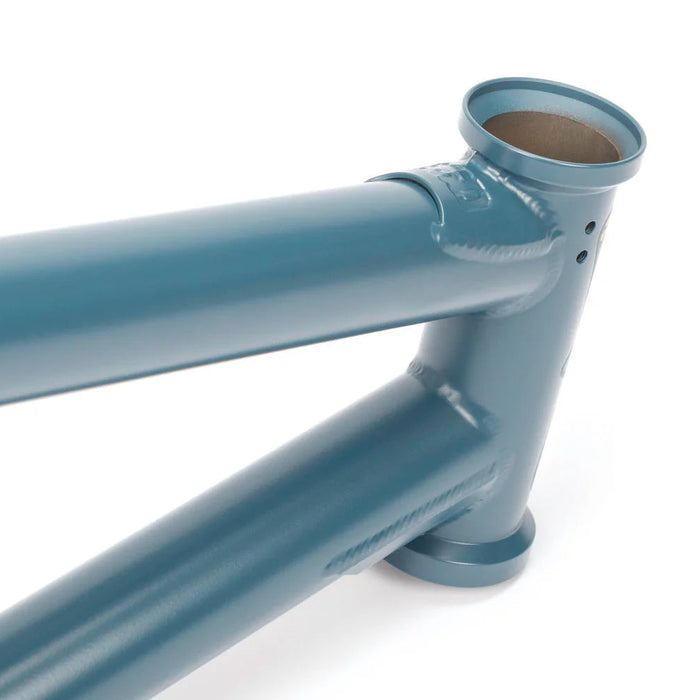

• Headtube: Heat-treated 4130 CrMo / CNC machined / offset thickness

• Bottom Bracket & Dropouts: CNC machined & invest cast 4130 CrMo

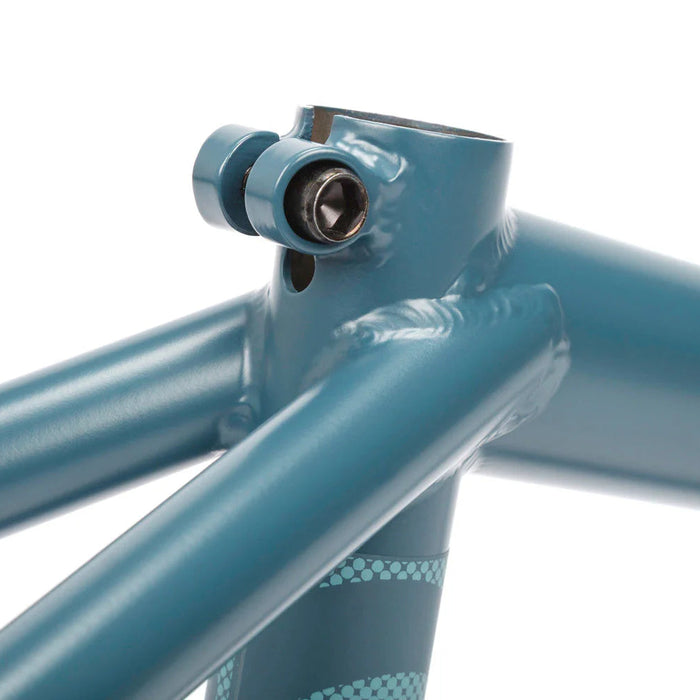

• Seat Clamp: Integrated

• Color: Dusk Blue – sleek, subtle, and stylish

The BSD Focus Frame isn’t just a signature model — it’s a fresh direction. Whether you ride fast and powerful like Gaspar or prefer a roomier setup for better control, the Focus delivers performance, durability, and timeless street geometry.
