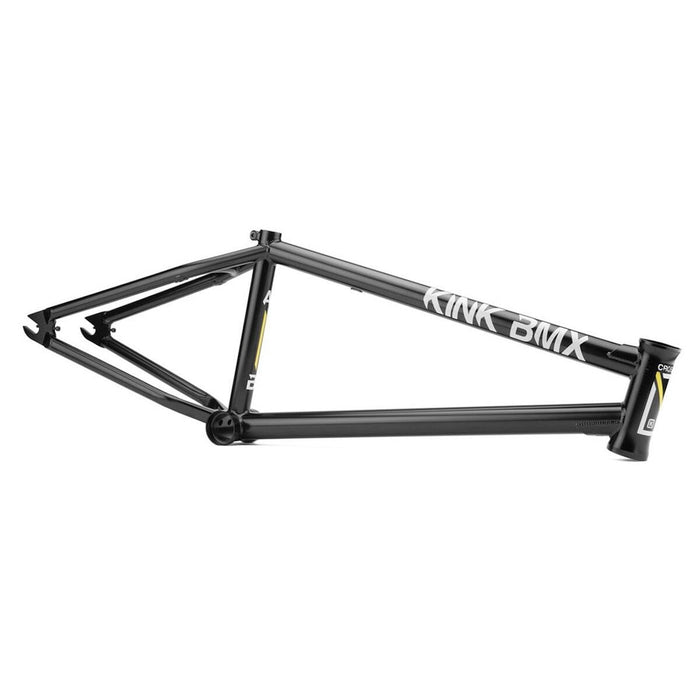

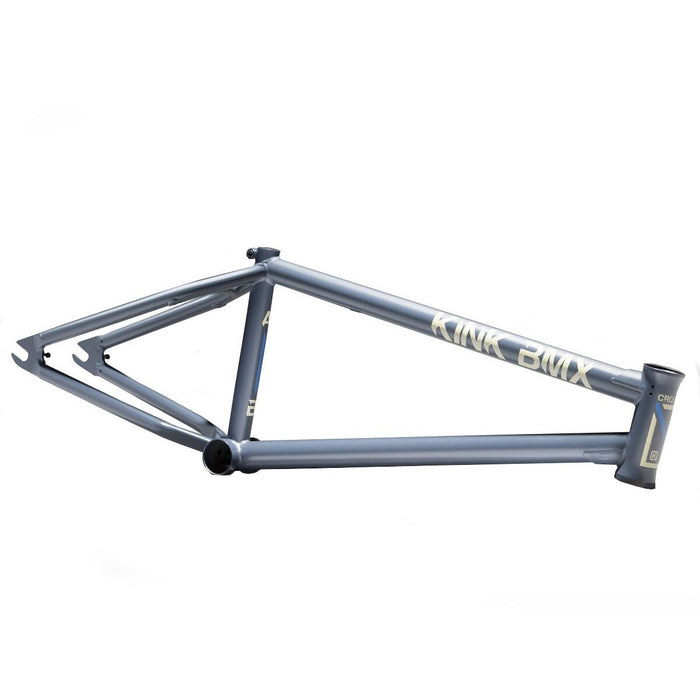

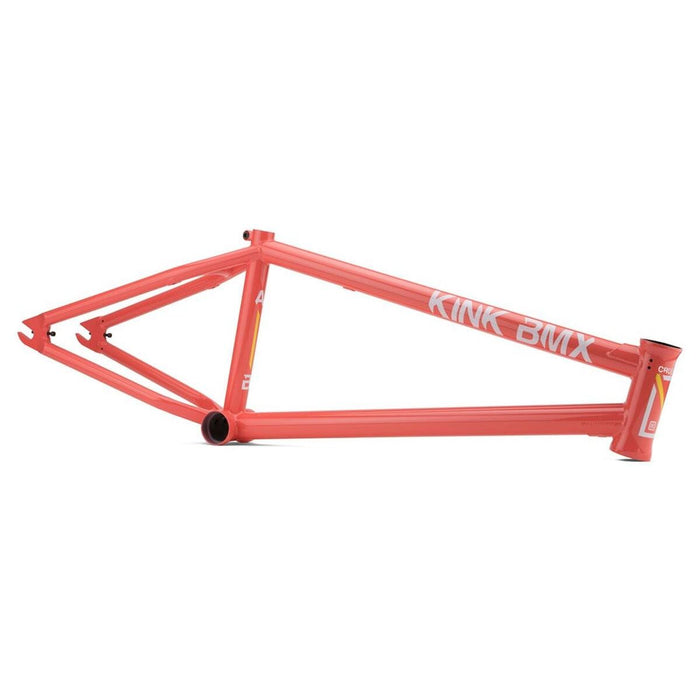

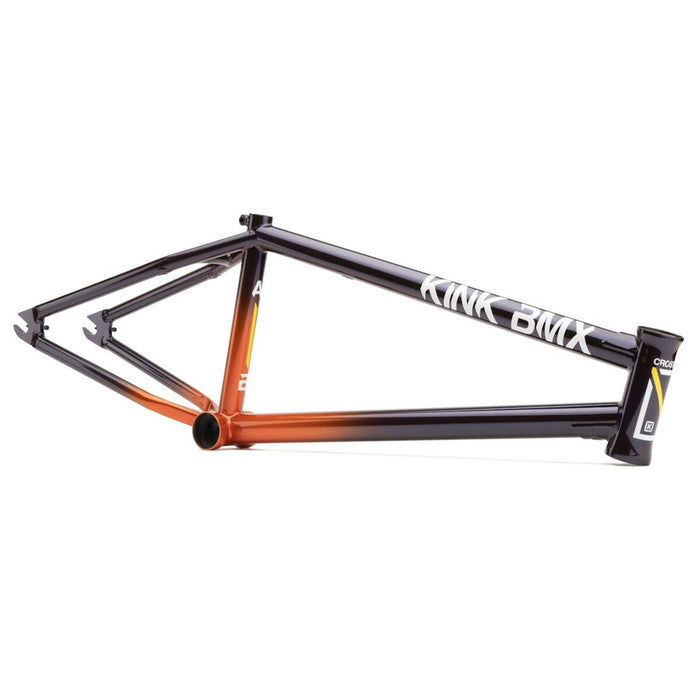

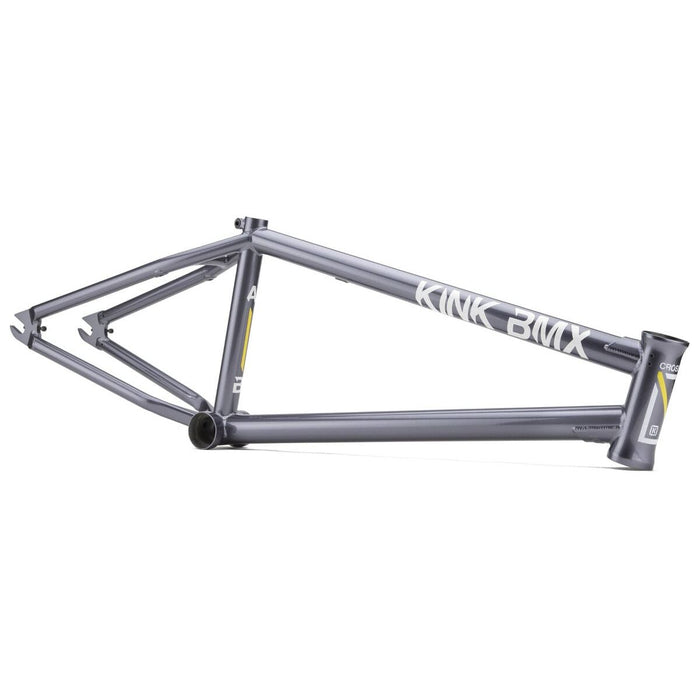

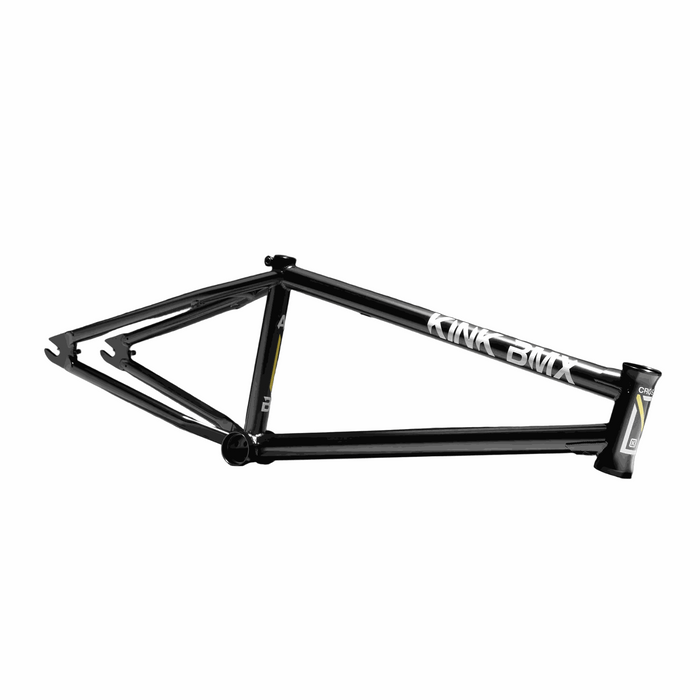

KINK CROSSCUT BMX FRAME

Kink Crosscut – Modern BMX Frame

The Kink Crosscut is a modern BMX Frame built for hard riding. Its Double-Butted Toptube and Downtube with Upper and Lower Gussets provides durability, while the short 12.5" Chainstay and 75.5° Headtube Angle make the frame nimble. The 9.25" Standover Height gives a clean, traditional look with modern geometry.

The Investment Cast Chainstay Yoke fits tires up to 2.55” and allows 25t or 28t Sprockets. Features include Integrated Seat Post Clamp, Integrated Chain Tensioners, and Removable Brake Mounts.

Geometry:

• Toptube Sizes: 20", 20.5”, 20.75”, 21”, 21.25"

• Chainstay Length: 12.5" Slammed

• Bottom Bracket Height: 11.6"

• Standover Height: 9.25"

• Headtube Angle: 75.5°

• Seattube Angle: 71°

• Headtube Height: 5"

Tech Specs:

• Material: 100% 4130 Chromoly Tubing

• Headtube: Integrated Campy Spec

• Dropouts: Laser Cut with Integrated Chain Tensioners

• Bottom Bracket: Internally & Externally Machined Mid BB

• Braking: Removable Through-Bolt Brake Mount System

• Particulars: Toptube & Downtube Gussets, Integrated Seat Clamp, Investment Cast Chainstay Yoke

• Weight: 4 lb 15 oz (20.5")
